OPTALIGN smart RS5 uses a single laser and a 5-axis sensor. The sensor contains two fully-linearized biaxial position detectors and a precision inclinometer. It can precisely measure relative shaft movement in five degrees of freedom. This measurement principle is the only one which allows ‘Live Move’ with concurrent monitoring of the vertical and horizontal machine corrections and with the sensor at any angular position.
Standard features
– Bluetooth module for wireless data transmission
– Live Move – concurrently monitors horizontal and vertical corrections
– Alignment of horizontal, vertical and flange-mounted machines
– Alignment of coupled, uncoupled and non rotatable shafts
– 2D straightness application
– Soft foot check – measure, correct and save results
– Automatic continuous measurement as shaft is rotated – start and stop rotation at any position
– Automatic evaluation of alignment condition with TolChek and user-defined tolerances
– Results table to verify measurement repeatability
– Flip machines to swap the position of the machines e.g. motor and pump
– InfiniRange extends detector measurement range to handle any amount of misalignment
– Checking the effects of pipe strain on machine
– Static measurement mode – requires any 3 of the 8 available 45° measurement positions
– Save reports as PDF directly to a USB stick
– Data protection – auto save and resume capability
Powerful options
3 – machine train alignment
Enter alignment targets and thermal growth values including input of dial indicator readings
Fixed feet selection – resolves base-bound or bolt-bound problems
Multipoint mode – measurement at any 3 or more positions over 60° rotation or more
Alignment of cardan and spacer shafts
Heavy-duty rechargeable Li-Ion battery
ALIGNMENT CENTER software to manage measurement files and create reports
OPTALIGN smart RS5 technical data:
Sensor
5-axis sensor: 2 planes (4 displacement axes and angle)
Environmental protection: IP 67 (submersible, dustproof)
Ambient light protection: Yes
Storage temperature: -20°C to 80°C [-4°F to 176°F]
Operating temperature: -10°C to 60° [14°F to 140°F]
Dimensions: Approx. 105 x 74 x 53 mm [4 9/64” x 2 29/32” x 2 3/32”]
Weight: Approx. 220 g [7 3/4 oz.]
Measurement area: Unlimited, dynamically extendible (U.S. Patent 6,040,903)
Resolution: 1 μm (0.04 mil) and angular 10 μRad
Accuracy: > 98%
Inclinometer resolution: 0.1°
Inclinometer error: 0.3% full scale
Laser
Type: Semiconductor laser diode
Beam divergence: 0.3 mrad
Environmental protection: IP 67 (submersible, dustproof)
Beam power: < 1 mW
Wavelength: 670 nm (typical) (red, visible)
Safety class: Class 2, FDA 21 CFR 1040.10 and 1040.11
Safety precautions: Do not look into laser beam
Power supply: Batteries 2 x 1.5V IEC LR6 (“AA”)
Storage temperature: -20°C to 80°C [-4°F to 176°F]
Operating temperature: -10°C to 50°C [14°F to 122°F]
Dimensions: approx. 105 x 74 x 47 mm [4 9/64” x 2 29/32” x 1 27/32”]
Weight: approx. 227 g (8 oz.] including batteries

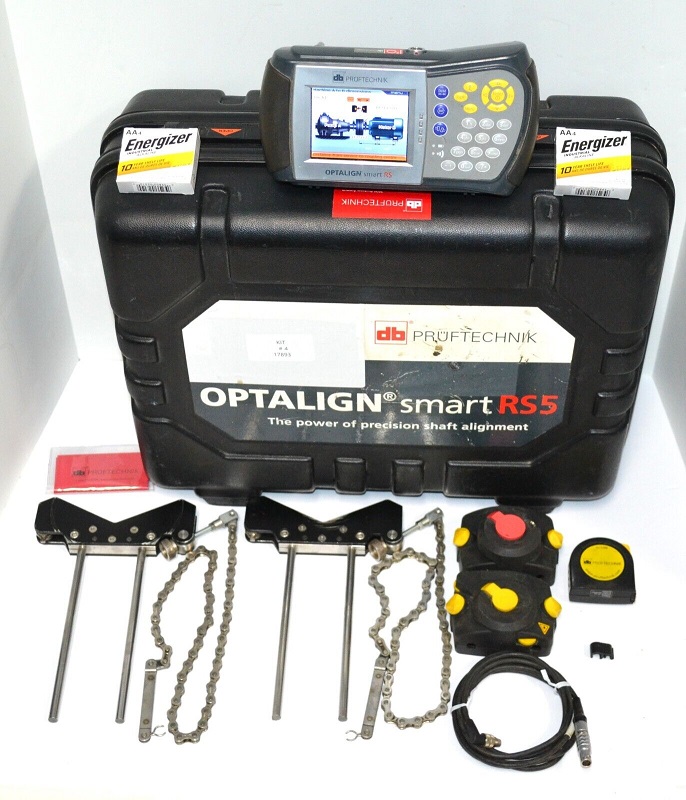

Package Includes:
Pruftechnik Hard Transport Case
Universal Compact Chain-Type Bracket Set
2 x Allen Wrench
USB Stick
Rotalign Ultra USB/ Peripheral Devices Cable
Pruftechnik Rotalign Ali 3.901
Pruftechnik Rotalign Ali 3.910
Tape Measure
14 x Precision Support Posts (Various Lengths)
Ali 3.901 Calibration Certificate
Ali 3.910 Calibration Certificate
Ali 12.200 Test Report
Shaft Alignment Features Certificate License
Shaft Alignment Firmware Registration Certificate
Quality Certificate
Optalign Smart RS5 BT Pocket Guide
Optalign Smart RS5 Product Catalogue
