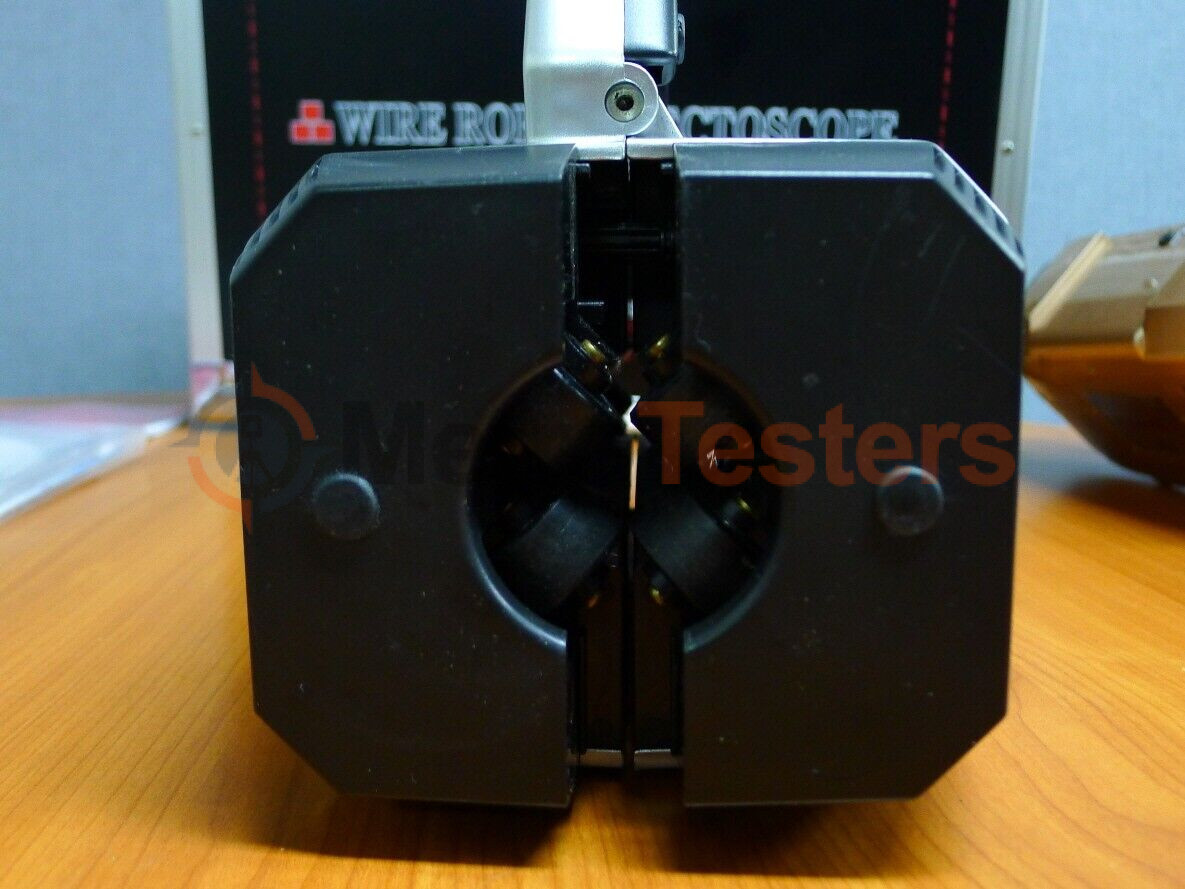

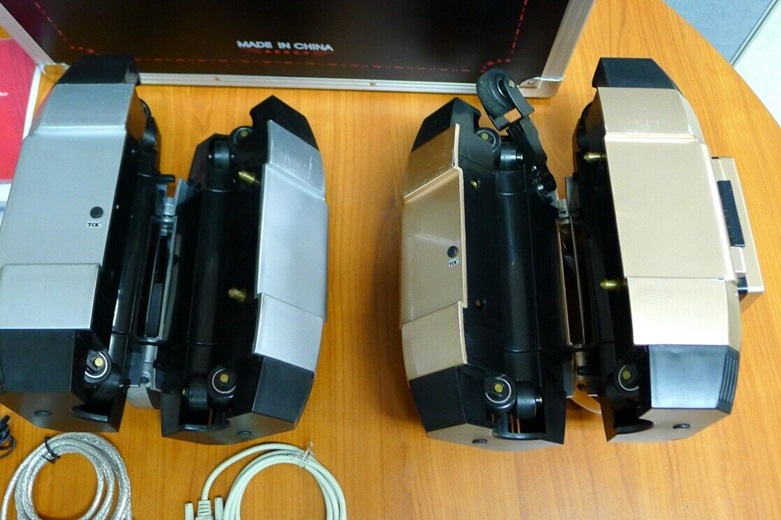

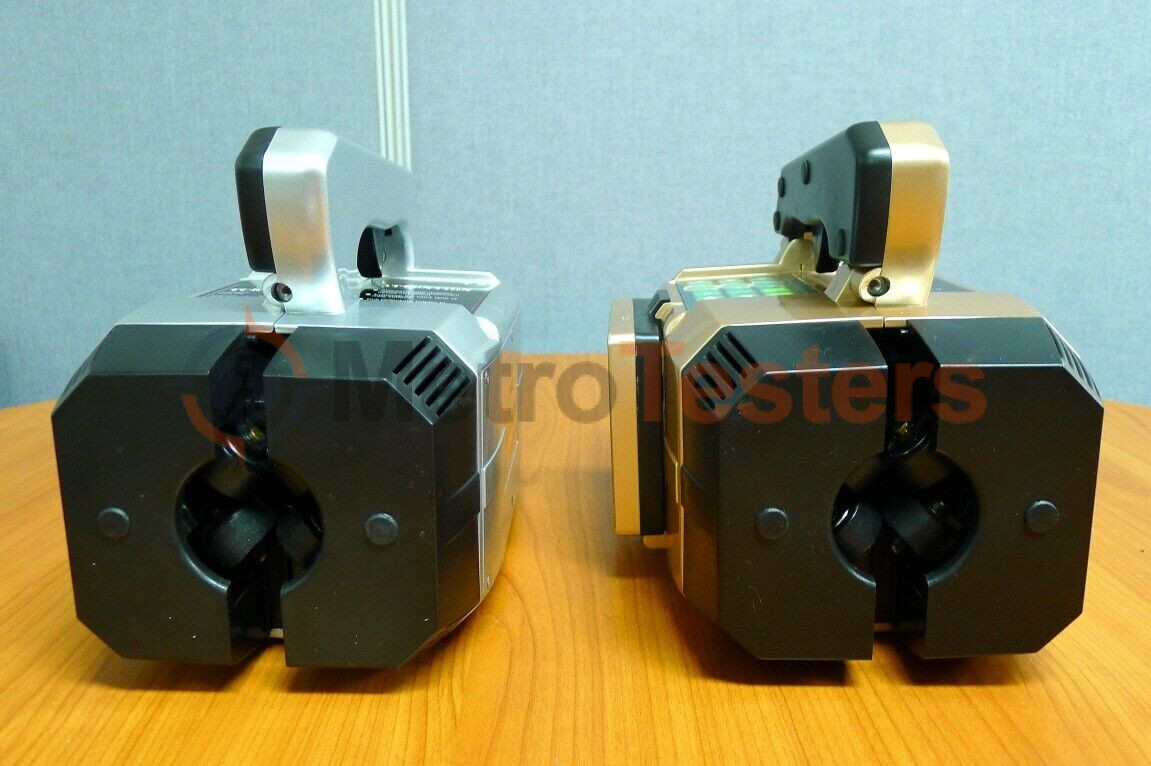

TCK TCK-BX40, TCK-RC40 Wire Rope TESTER

TCK TCK-BX40, TCK-RC40 Wire Rope TESTER / Inspection Equipment

The model of TCK-BX40, TCK-BX55, TCK-BX65,has the same structure, mechanism, configuration and function, the only difference is diameter of inner shell of the instrument.

• TCK-RC40 Weak Magnetic Loader
• Rare-earths permanent magnetic load unit
• Permanent magnetic status without power supply

TCK-RC40 Weak Magnetic Loader

• Rare-earths permanent magnetic load unit
• Permanent magnetic status without power supply

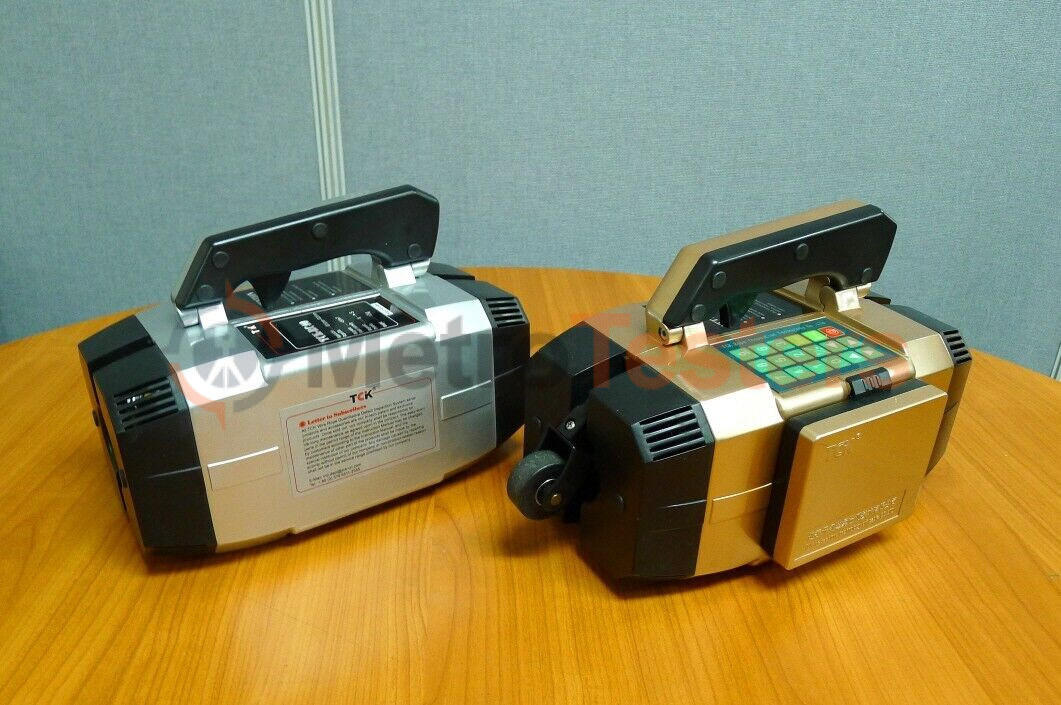

• TCK-BX40 Defectoscope
• 6 Channel TCK “Eagle-eye” Sensor Modules;
• TCK Noise Immunity Module;
• TCK State-diagnosing Module
• TCK Digitization Module
• TCK Signal Fidelity Module
• Communication serial port (RS232)
• Communication baud rate 11200bps
• 128 x 128 LCD
• 512kROM, built-in international secondary word-base
• 16-bit industrial CPU
• 32M data storage, 10 years data retention during powerdown.
• Embedded real-time clock
• Input voltage: DC +9V

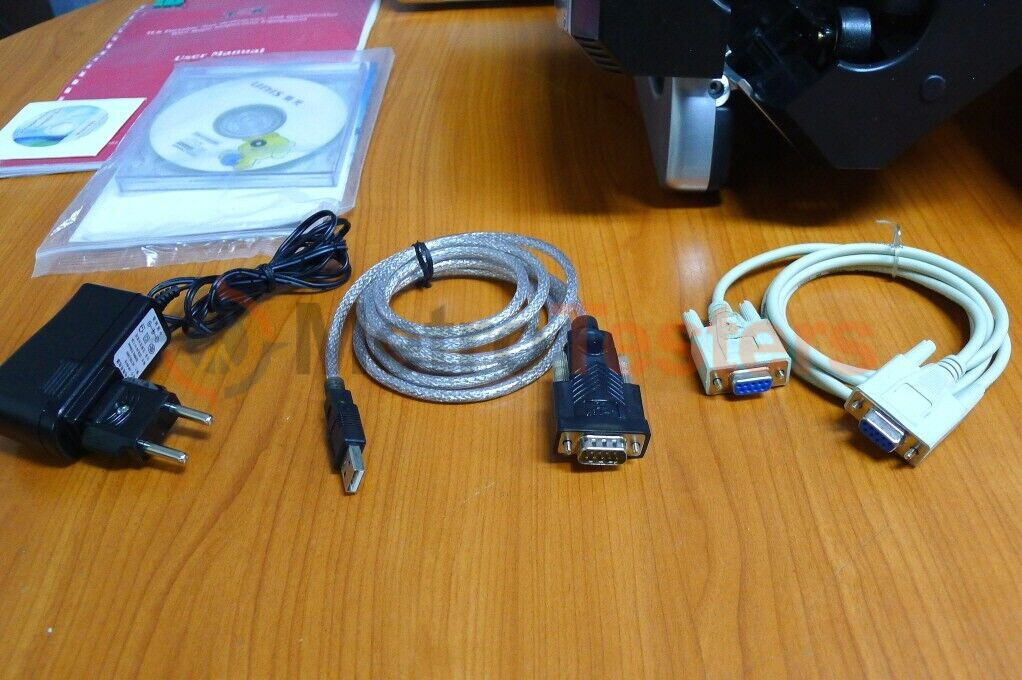

• “TCK Lithium battery” and “charger adapter”

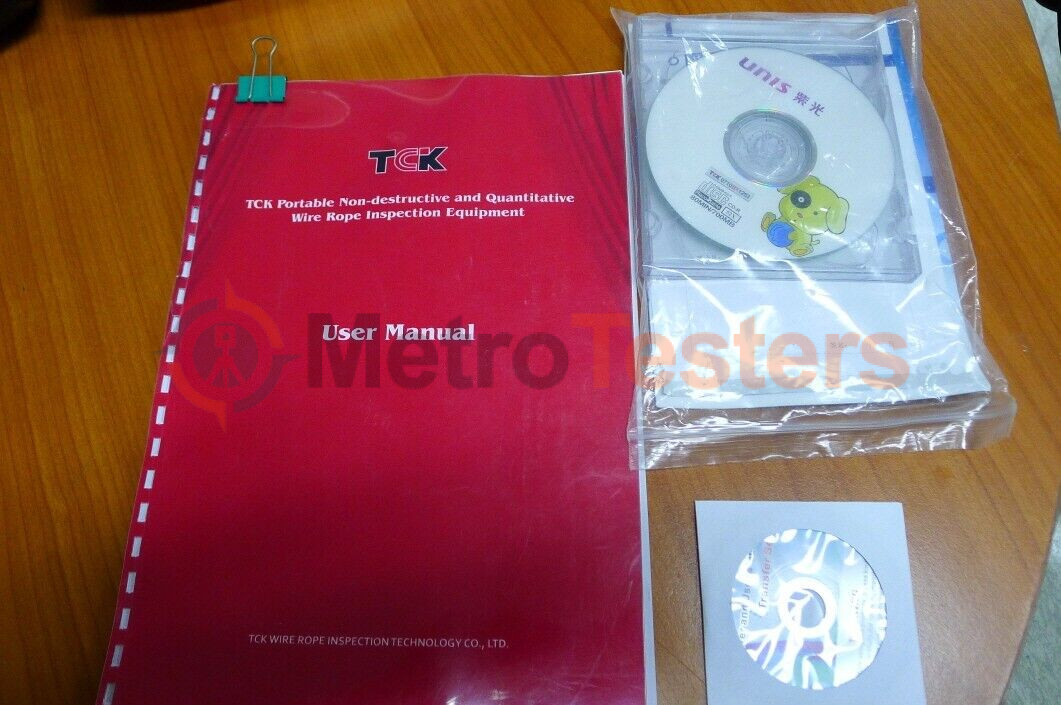

• Dedicated Analysis Software of Lower Machine
