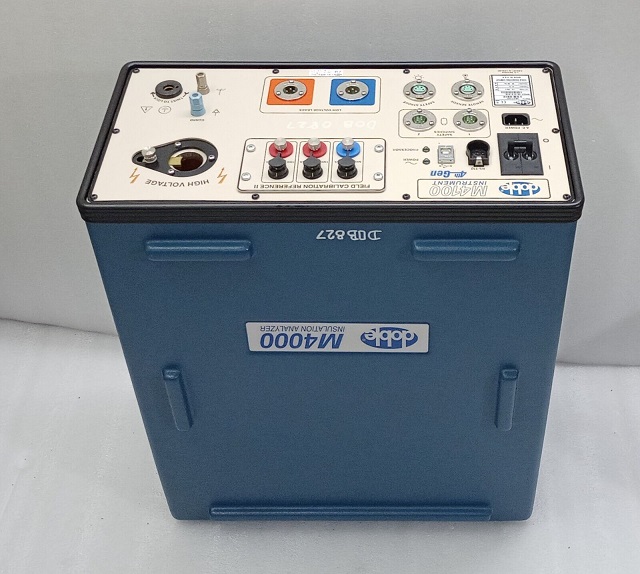

Doble M4100 Insulation Analyzer 4th Generation

Doble M4100 Insulation Analyzer 4th Generation
The M4100 is the industry standard for power apparatus and insulation testing. Its unique combination of test capabilities and artificial intelligence analysis software makes it the power industry’s most trusted Power Factor/Tan-Delta instrument.
These instruments are used around the globe thanks to their comprehensive testing options, safety features and measurement accuracy.

FEATURES
Power Factor/Tan-Delta testing to confirm insulation integrity and quality
Capacitance testing to measure physical changes that may have occured to the apparatus
HV turns ratio testing to detect shorted turns or winding damage
Leakage reactance/short circuit impedance testing to evaluate winding deformation
Single phase excitation current testing to evaluate transformer magnetizing circuit
Capacitor bank testing to detect deteriorating or failed capacitors within a bank
Generates its own precise sine wave test signal
Self-calibrating in the field
Easy and accurate testing with Doble Test Assistant software (DTA)

BENEFITS
Safety is our priority with dual safety switches, power strobes and ground earth relay interlocks
Eliminates the effect of varying electrostatic interference with patented Line Frequency Modulation, which makes measurements at a frequency above and below the system frequency
Reliability & Accuracy—generates its own clean test signal using an internal waveform generator for reliable results and stable readings
Software firmware system senses abnormal current, temperature and voltage operation even before a user would notice
Instantly analyze your test results, providing clear recommendations and explanations with FRANK™, the First Response Analytics Knowledgebase

TECHNICAL SPECIFICATIONS
Operating Temperature: -20° to 50°C / -4° to 122°F
Dry Heat: IEC 60068-2-2
Cold: IEC 60068-2-1
Shock & Vibration: IEC 60068-2-27, IEC 60068-2-7 & ASTM D999.75
Drop Test: EC 60068-2-6
Weight: 95 lb / 43 kg
Dimensions: 10.3 H x 20 W x 25.3 D (in) 26 H x 50.8 W x 64.1 D (cm)
Software: DTA6 Basic
